Special Metals is famous manufacture in the leading market for providing best quality Inconel 600 /601 Round Bars.
What is Inconel 600/601 round bars?
Inconel 600 / 6001 is a nickel-chromium group of alloys. They are alloys that can sustain carburization to a great extent.
Properties of these round bars:
Table Of Content
- What is Inconel 600 / 601 Round Bar
- Inconel 600 / 601 Round Bar Specifications
- ASTM B166 Inconel 600 / 601 Round Bar Equivalent Grades
- Inconel 600 / 601 Bar Types
- Inconel 600 / 601 Round Bar

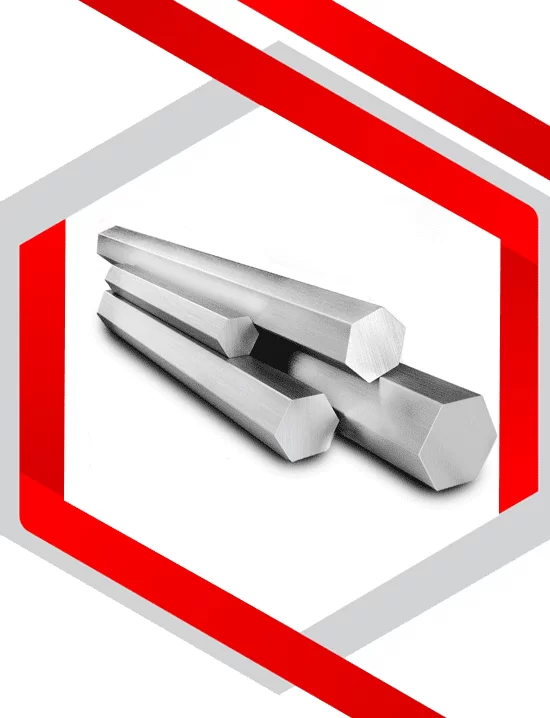

- Inconel 600 / 601 Hex Bar
- Inconel 600 / 601 Flat Bar
- Inconel 600 / 601 Square Bar
- Inconel 600 / 601 Rectangular Bar
- Inconel 600 / 601 Forged Bar
- Inconel 600 / 601 Round Bar Sizes
- Inconel 600 / 601 Round Bar Weight Chart
- Chemical Composition of Inconel 600 / 601 Round Bars
- Mechanical Properties of Inconel 600 / 601 Round Bars
- Ready Stock of Inconel 600 / 601 Round Bar in India
- Inconel 600 / 601 Round Bar Application Industries
- People Also Searched for
What types of finishes are applied to these Round Bars?
Centreless ground finish, rough turned finish, slit rolled edge, etc.
Which technique is used to cut them and use?
Bar cutting using high speed steel tools can be used to cut these bars and obtain metals for further processing. These round bars are hardened using heat treatment followed by quenching and water solution.
Physical dimension:
The diameter has measurements in mm that is 3-800. Such dimensions may be altered as per the client’s needs.
Inconel general features:
What is the difference between 600 and 601 round bars?
Both grades have the same elements in them, except that 600 grade has the addition of aluminium in them. This increases the power of the mechanical strength of the grade. On the other hand, 601 grade can work conveniently in the high range of temperatures too.
Characteristics of Inconel 600/601 round bars:
What are the various advantages of using Inconel grade?
These Inconel round bars can be formed in various specifications, lengths and thicknesses, etc. The tensile strength they have is very high. They are extremely hard and hence sustainable too. The yield power possessed by these bars are great. Tests like hardness tests and tension tests determine their compatibility and usability. The high tolerance levels are being exposed to them in order to make them suitable for critical uses.
Applications:
These grades of Round Bar are typicslly used in the boilers of waste incinerators. These bars are highly suitable for numerous high temperature applications.
Specifications : ASTM B166 / ASME SB166
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Size : 5 mm To 500 mm
Length : 9 – 12 metres
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish : Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Size and Dimensions of Inconel 600 Round bar | |||||||
---|---|---|---|---|---|---|---|
Metric | US Bars | ASTM/ Canadian | Japanese | ||||
Bars Size | Diam. (mm) | Bars Size | Diam. (Inch) | Bars Size | Diam. (mm2) | Bars Size | Diam. (mm) |
5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
12 | 12 | #10 | 1.250 | 32 | 32 | ||
14 | 14 | #11 | 1.375 | 35 | 35 | ||
16 | 16 | #12 | 1.500 | 38 | 38 | ||
18 | 18 | #13 | 1.600 | 41 | 41 | ||
20 | 20 | #14 | 1.750 | 44 | 44 | ||
22 | 22 | #15 | 1.875 | 48 | 48 | ||
25 | 25 | #16 | 2.000 | 51 | 51 | ||
28 | 28 | #18 | 2.250 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Round Bar | ||||||||
Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
2-1/2″ | 7.576 | 24.856 | ||||||
2-5/8″ | 8.354 | 27.409 | ||||||
2-3/4″ | 9.169 | 30.083 |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
